Most access control systems use the Wiegand interface to connect card readers to controllers. In practice, the maximum reliable distance is typically 20 to 60 meters.

When the distance between the reader and the controller exceeds this range, our solution allows you to extend it:

Near the reader, a converter transforms the Wiegand signal to RS485.

Near the controller, an identical converter transforms the RS485 signal back to Wiegand.

Using this system and high-quality cabling (e.g., twisted pair, Category 5), transmission distances of 300 meters or more are easily achievable.

The Wiegand-to-RS485 converter uses a high-reliability MCU chip with an integrated watchdog circuit that automatically monitors the device and resets it in case of an error, ensuring continuous operation.

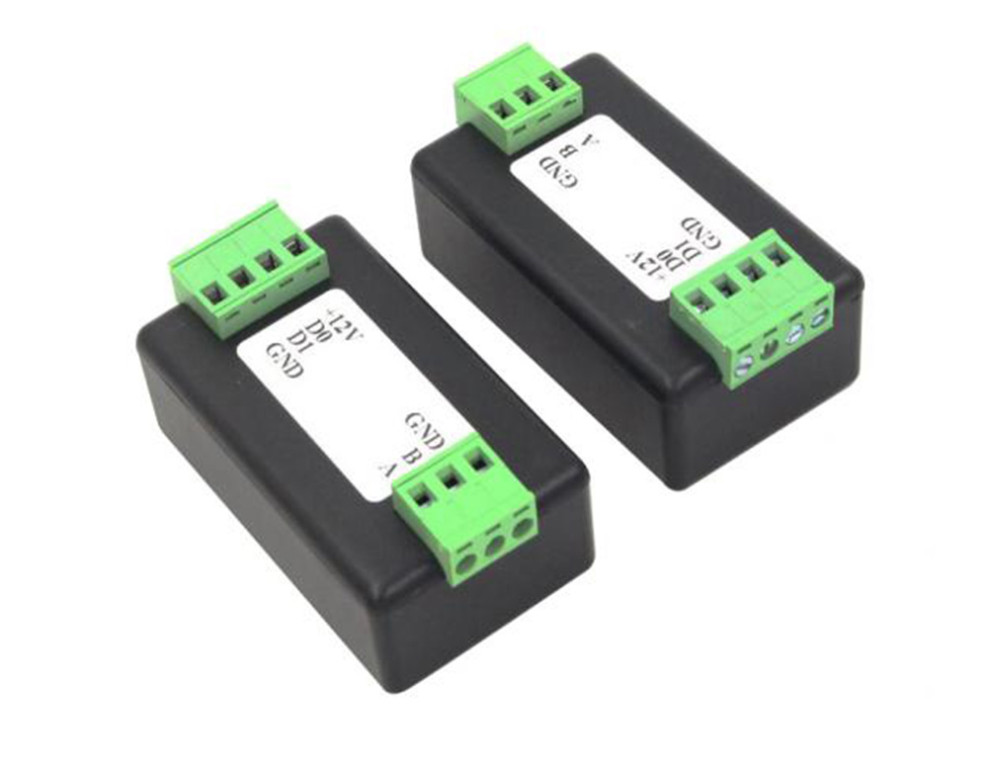

Dimensions: 70 × 41 × 23 mm

Connectors: Industrial-grade terminals for easy and stable wiring

Proven durability — many units have been in continuous operation for over 7 years

Features:

Automatically recognizes most Wiegand formats (from WG26 to WG80), including original card reader protocols

No need for separate transmitter and receiver units — either converter can function on both ends

Ideal for commercial, industrial, and high-security installations

Installation and Use

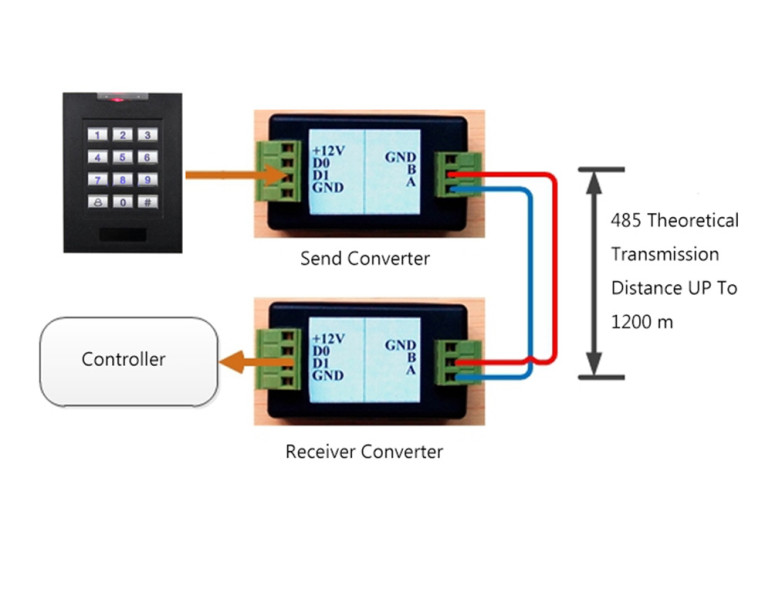

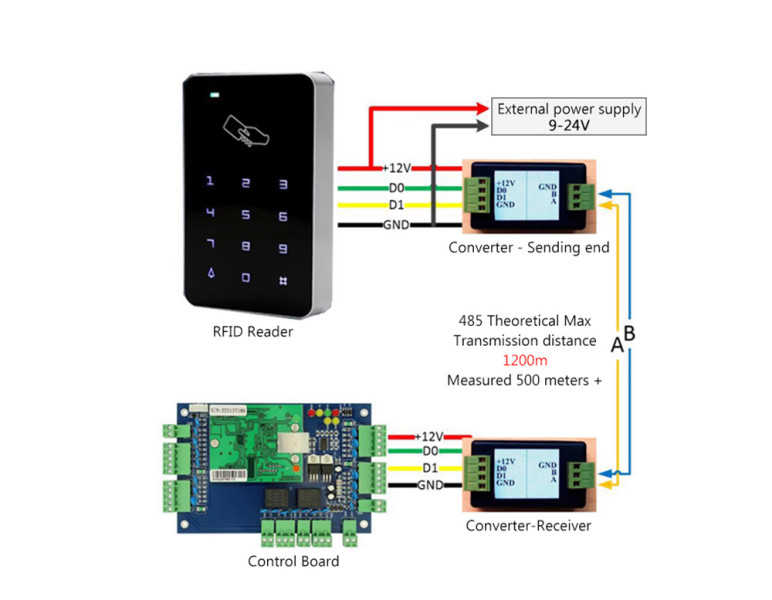

The amplifier setup includes two Wiegand converters: one connects to the reader, the other to the controller.

D0/D1 of the converter connects directly to D0/D1 of the reader/controller

Power supply can be shared with the reader/controller

The converters are connected via RS485: B-B, A-A

Power Supply

Voltage: 9–15V DC

Can be powered directly by the 12V controller supply

Static working current: approx. 20mA

Can also be powered by an external 9–12V power source

For further information or a quote, contact us at info@rfidspecialist.eu. Our team of experts is here to assist and answer any of your questions.

If you are an integrator or reseller, we offer special discounts.
