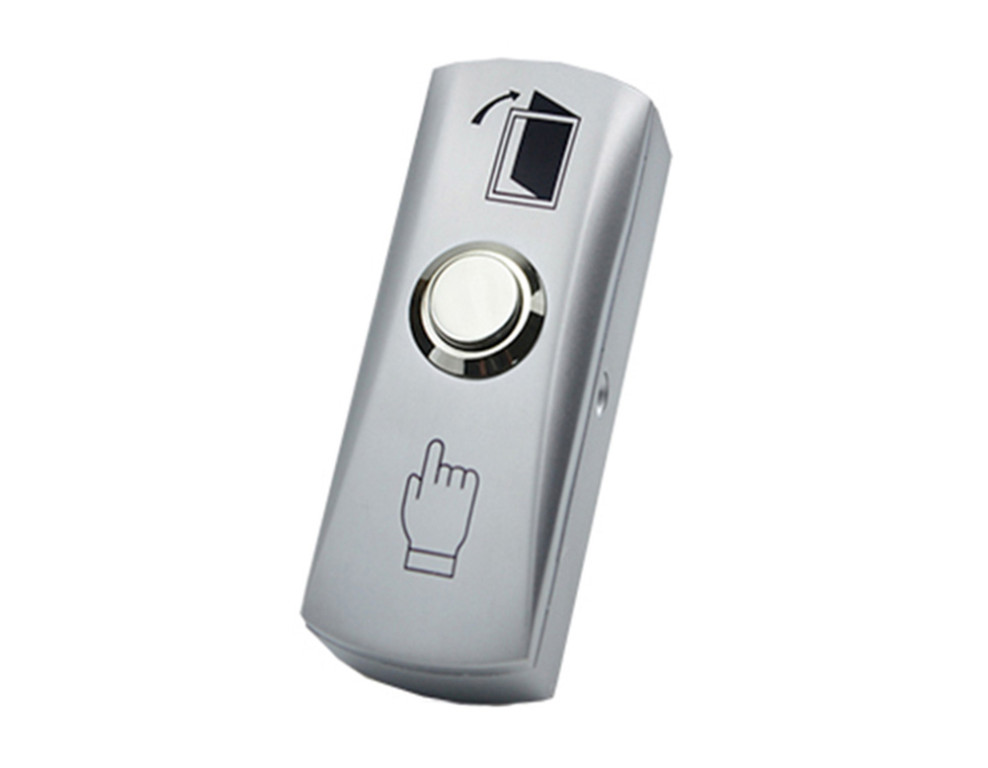

Metal Exit Button with Housing
(Product ID: 3800)

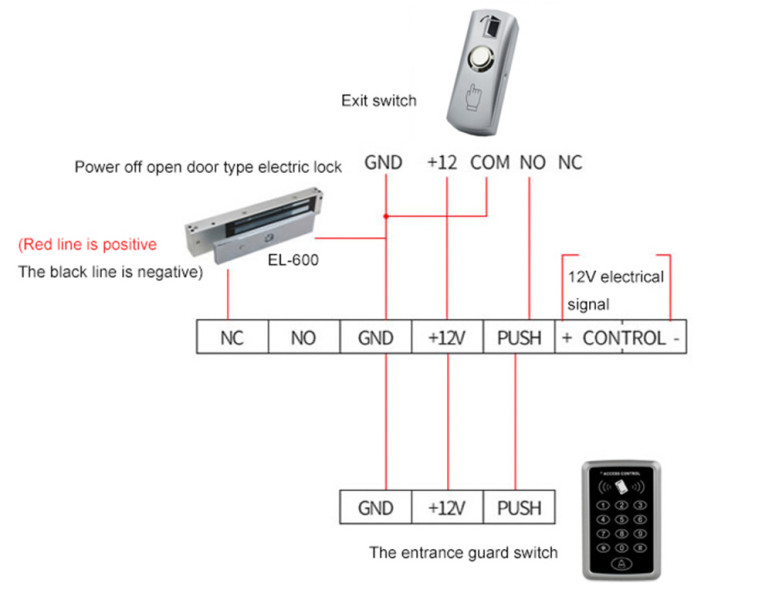

The metal exit button with housing allows users to open doors from the inside of a secured area. The button is connected to an access control device and triggers the relay on the controller.

These buttons are typically installed near exit doors and enable easy exit from restricted areas.

The button measures 80 × 50 × 23 mm and features volt-free contacts, which are usually connected to an access control system.

For further information or offer, contact us at info@rfidspecialist.eu. Our team of experts is here to assist and answer all your queries.

If you are an integrator or reseller, we offer special discounts.

Price/item: 8,43 EUR (with vat 10,28 EUR)

Status: In stock

Dispatching time: 1-3 days

Product ID: 3800

Quantity:

Total:

8,43 EUR

Total with vat:

10,28 EUR

Add to cart

Do you need print or other specific requirements?

Send inquiry

INFO

The exit button is integrated with the access control system and provides a secure and convenient way for users to leave a protected area.

Technical Specifications

Model: SDC-BE-1405
Dimensions: 30 x 80 × 24 mm

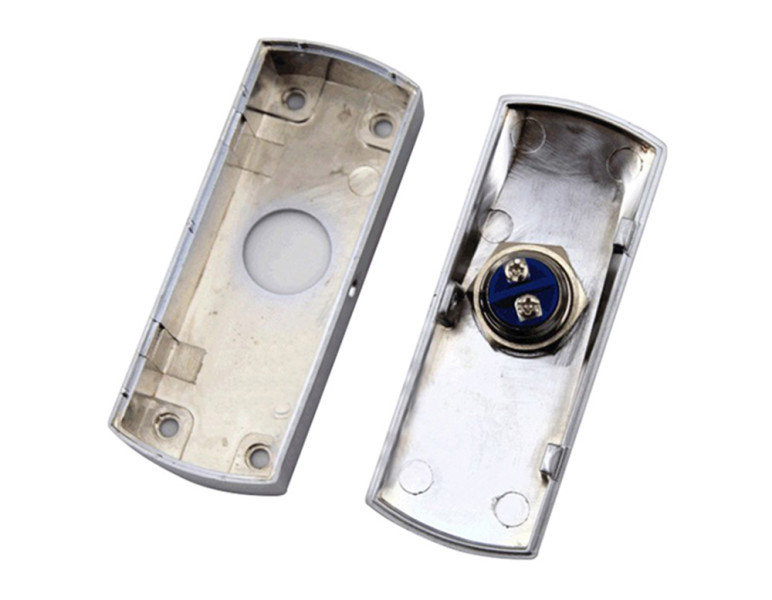

Material: Metal housing, zinc alloy
Rated Current: 3A, 36V DC
Output Contact: NO, NC, COM
Lifespan: 5,000,000 operations
Operating Temperature: -10°C to +55°C
Humidity: 0–95%
Weight: 133 g
